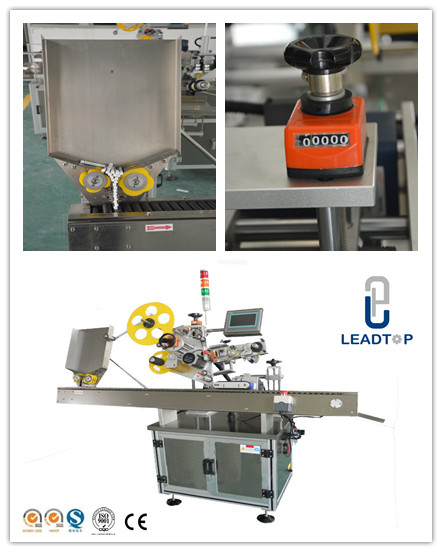

Vertical Small Round Bottle Sticker Automatic Labeling Machine With Servo Or Step Motor
Quick Detail:
Driving mode: Servo or step motor
Running speed: 30-60 bottle/min (Step motor) 60-230 bottle/min (Servo motor)
Model No.: MT-60
Labeling speed: ≤40m/min
Overall Size: 1800×700×1270mm
Weight:300kg
Material: Stainless steel 304
Certificate: CE Certificate
Description:
1. The damaged rate of bottle is less than 1/200000;
2. Using touch-screen control operating system, simple and efficient;
3. Advanced technology of pneumatic coding system, print the batch number and expiry clearly;
4. Transmission-type rolling bottles make sure the labels attached more firmly;
5. Adopt mature technology PLC control system; operation is stable and high-speed;
6. Imported electric elements, stable performance, low failure rate;
7. Adopting photoelectric detection, PLC control, software operation, conveyor belt, labeling accurately and high precision;
8. No bottle not labeling, automatic alarm when achieve leakage label.
9. The whole machine use the material of S304 stainless steel and anodized senior aluminum alloy.
Applications:
MT-60 model Vertical small round bottle sticker labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.
Specifications:
| Production | 30-60 bottle/min (Step motor) |
| 60-230 bottle/min (Servo motor) |
| Labeling speed | ≤40m/min |
| Labeling specification | Glassine paper, transparent and opaque |
| Printer to use air | 5kg/cm² |
| The application of bottle | Outer diameter 12-24mm Height 25-95mm |
| The application of label | Height 20-70mm Length 25-80mm |
| The inner diameter of label plate | Min. 76mm |
| The outer diameter of label plate | Max. 350mm |
| Driving mode | Servo or step motor |
| The power of motor | 300w |
| Size appearance | 1800×700×1270mm |
| Voltage | AC 220V 50/60Hz Single phase (according to the voltage in client country) |
Competitive Advantage:
1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
